20ft Bunded Storage Container – Shipping Container Conversion for Secure Storage

Description

Explore the 20ft Bunded Storage Container – Shipping Container Conversion for Secure Storage at 175 Container Partner for storage with secondary containment. Review the listed containment arrangement, flooring, access, and compatibility with the materials you intend to store.

The specification and configuration details below help you assess this model. Confirm the actual unit, included equipment, delivery access, and any documentation needed for your intended use before ordering. Optional features are separate from standard inclusions.

Technical Specifications

• External Dimensions (L x W x H): 20 ft x 8 ft x 8.5 ft (Approx. 6.06 x 2.44 x 2.59 m) .
• Internal Dimensions (L x W x H): Approx. 19.4 ft x 7.8 ft x 7.9 ft (Approx. 5.90 x 2.35 x 2.39 m) .
• Door Opening: Approx. 7.8 ft wide x 7.5 ft high (Approx. 2.34 m x 2.28 m) .
• Material: 14-gauge Corten steel .
• Tare Weight: Approx. 5,000 lbs (Approx. 2,250 kg) .
• Flooring: Marine-grade plywood over steel cross members, sealed as part of the bunded system.
• Containment Capacity: Integrated liquid-tight sump (Capacity varies by specific build; please verify with your supplier).

Applications and Compatibility

• Industrial Storage: Secure on-site storage for chemical drums (55-gallon), intermediate bulk containers (IBCs), and fuel caddies .
• Environmental Compliance: Facilities requiring secondary containment for hazardous materials to meet regulatory standards.
• Worksite Organization: Providing a centralized, secure, and contained area for lubricants, paints, and other operational fluids on construction, mining, or agricultural sites.
• Utility Storage: uses: storing generators, pumps, or other equipment where secondary containment for potential fuel leaks is required.

Listed Inclusions

• (1) 20 ft shipping container, converted with a bunded floor and spill containment system.

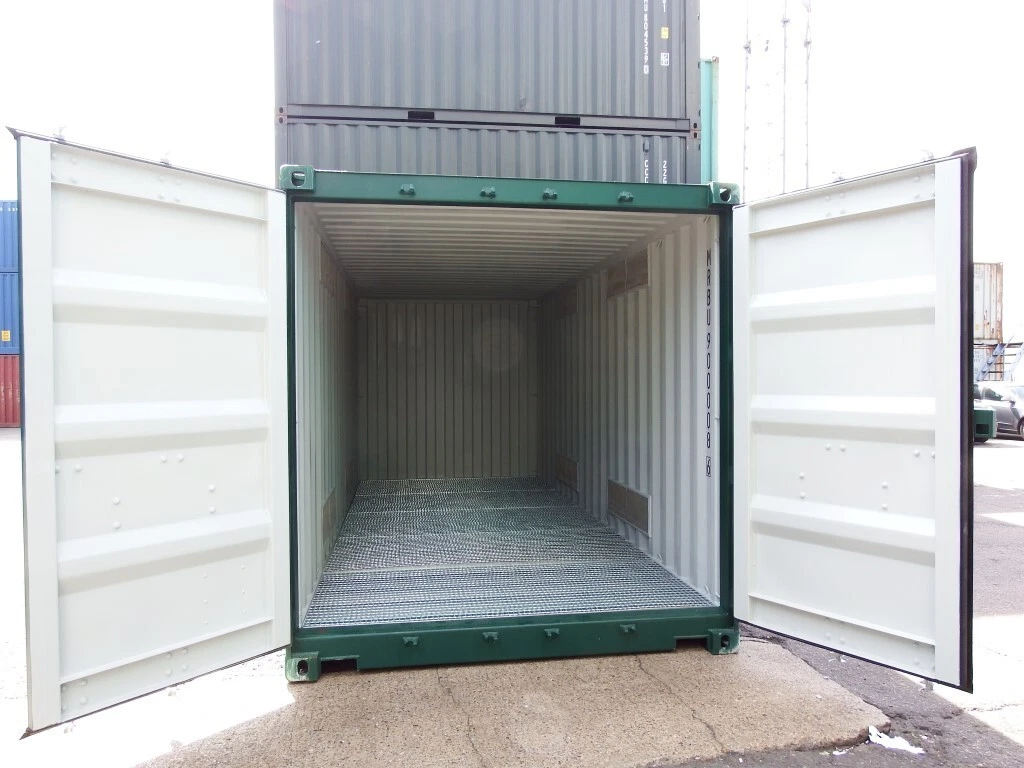

• (1) Pair of lockable double-swing cargo doors at one end.
• Standard passive ventilation louvers.

Additional Listed Features

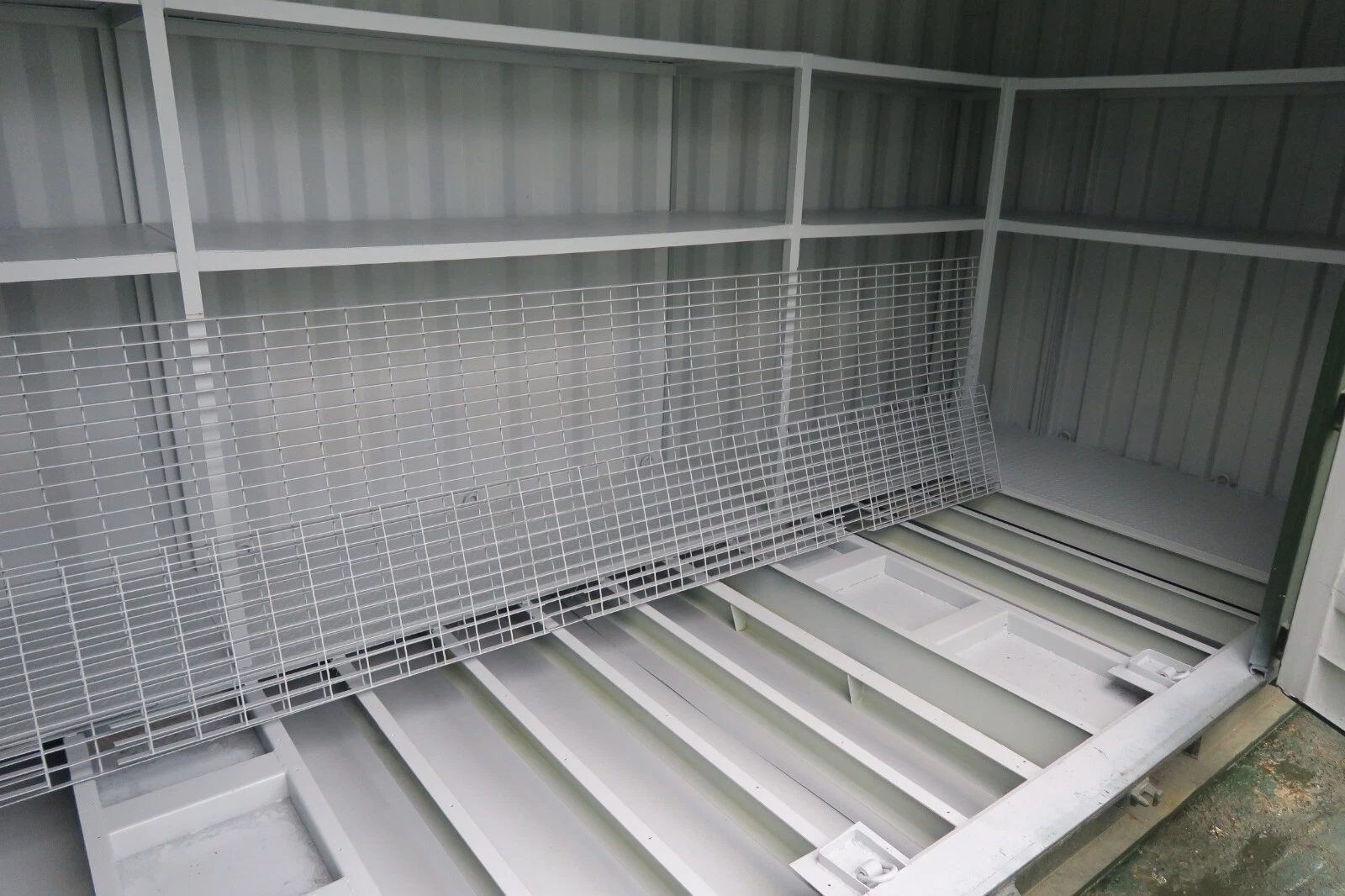

• Integrated Bunded Containment: Features a liquid-tight sump within the floor, engineered to provide secondary containment for stored drums or IBCs, helping to prevent environmental contamination from spills or leaks.
• Robust Steel Construction: Built with a Corten steel frame and corrugated walls, offering high-strength structural integrity and resistance to corrosion for long-term outdoor use .
• Secure Locking System: Equipped with lockable double doors featuring integrated steel locking rods, providing secure access control and protection for high-value or hazardous contents .

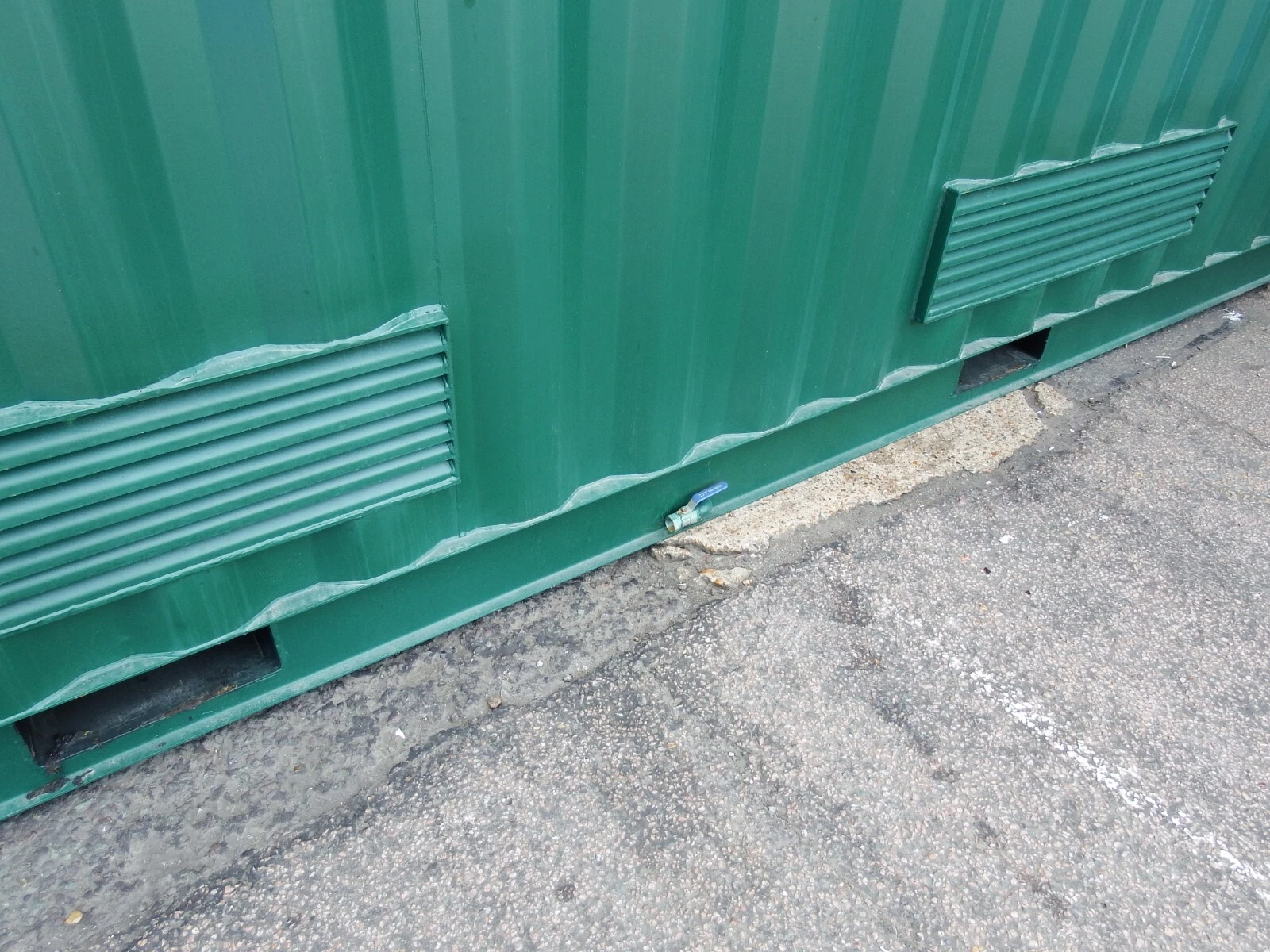

• Ventilation: Standard passive ventilation louver are integrated into the unit to reduce fume buildup and condensation, supporting a safer internal environment for stored materials .
• ISO Standard Footprint: Manufactured to standard ISO dimensions, allowing for efficient transport via truck, rail, or ship, and easy handling with standard forklifts and container handling equipment .
