Description
Explore the 30 ft Customized Reefer Container – Mobile Cold Storage Freezer Unit at 175 Container Partner for temperature-controlled storage. Compare the cooling equipment, insulation, power supply, and stated operating range with the needs of your goods and installation site.
The specification and configuration details below help you assess this model. Confirm the actual unit, included equipment, delivery access, and any documentation needed for your intended use before ordering. Optional features are separate from standard inclusions.
Technical Specifications
| Specification | Listed Detail |
|---|---|
| External Dimensions (L x W x H) | Approx. 29′ 11″ x 8′ 0″ x 8′ 6″ (9.12m x 2.44m x 2.59m) |
| Internal Dimensions (L x W x H) | Approx. 28′ 10″ x 7′ 5″ x 7′ 6″ (8.78m x 2.26m x 2.28m) |
| Door Opening (W x H) | Approx. 7′ 5″ x 7′ 5″ (2.26m x 2.26m) |
| Internal Volume | Approx. 1,600 Cubic Feet (45.3 Cubic Meters) |
| Maximum Gross Weight | 67,200 lbs (30,480 kg) |
| Tare Weight | Approx. 8,820 lbs (4,000 kg) |
| Insulation Thickness | Walls/Floor/Roof: 4″ to 5″ (100mm to 127mm) Polyurethane Foam |
| Refrigeration Unit | Carrier Transicold / Thermo King (or equivalent integrated unit) |
| Temperature Range | Configurable between -20°F and 40°F (-29°C to 4°C) |
| Power Requirements | 400V / 50Hz or 480V / 60Hz (3 Phase) |
| Material | Corten Steel (Weathering Steel) Exterior, Aluminum or galvanized steel interior lining. |
Listed Features
- 1 x 30-foot refrigerated shipping container

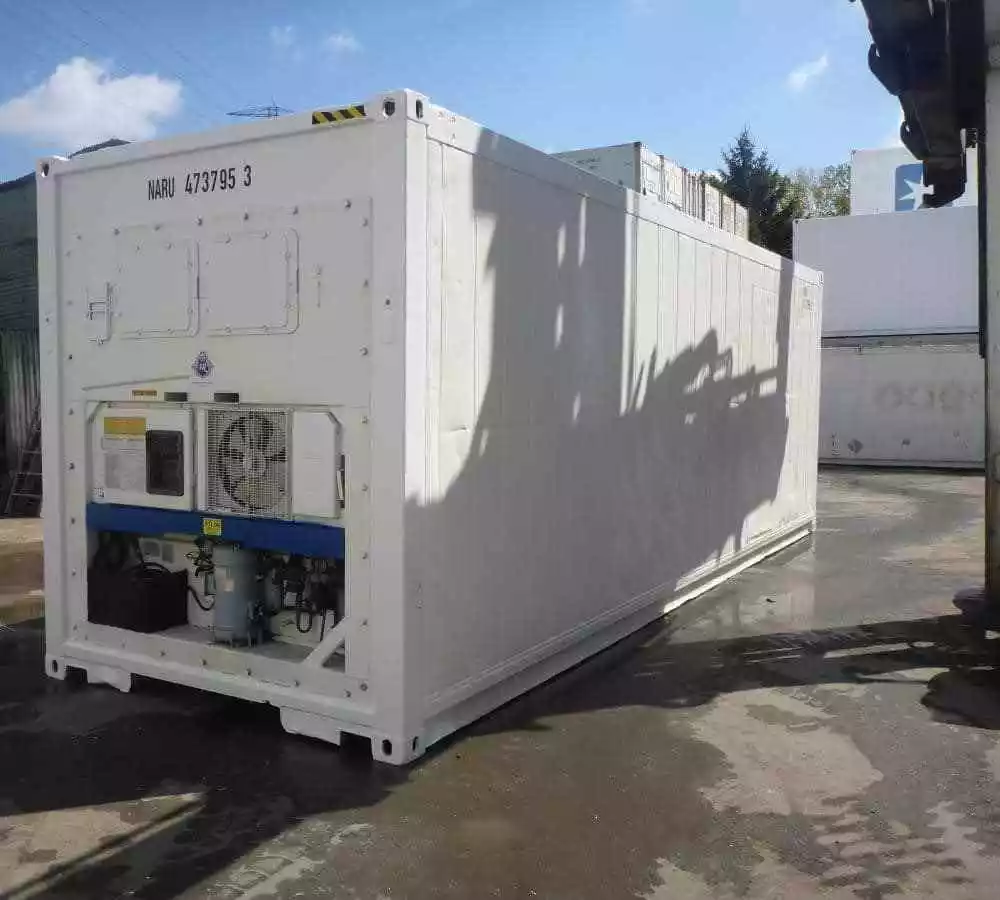

- 1 x Integrated, factory-tested refrigeration unit
- Standard lock boxes on double-door ends
Additional Listed Features
- Durable Construction: Built with weathering Corten steel to withstand varied environmental conditions across the United States.
- Precise Temperature Control: Equipped with an integrated refrigeration unit capable of maintaining a consistent temperature range uses: frozen goods.
- Customizable Configuration: This mobile cold storage cell container can be modified to include features such as shelving, data loggers, or additional interior lighting based on specific operational needs.

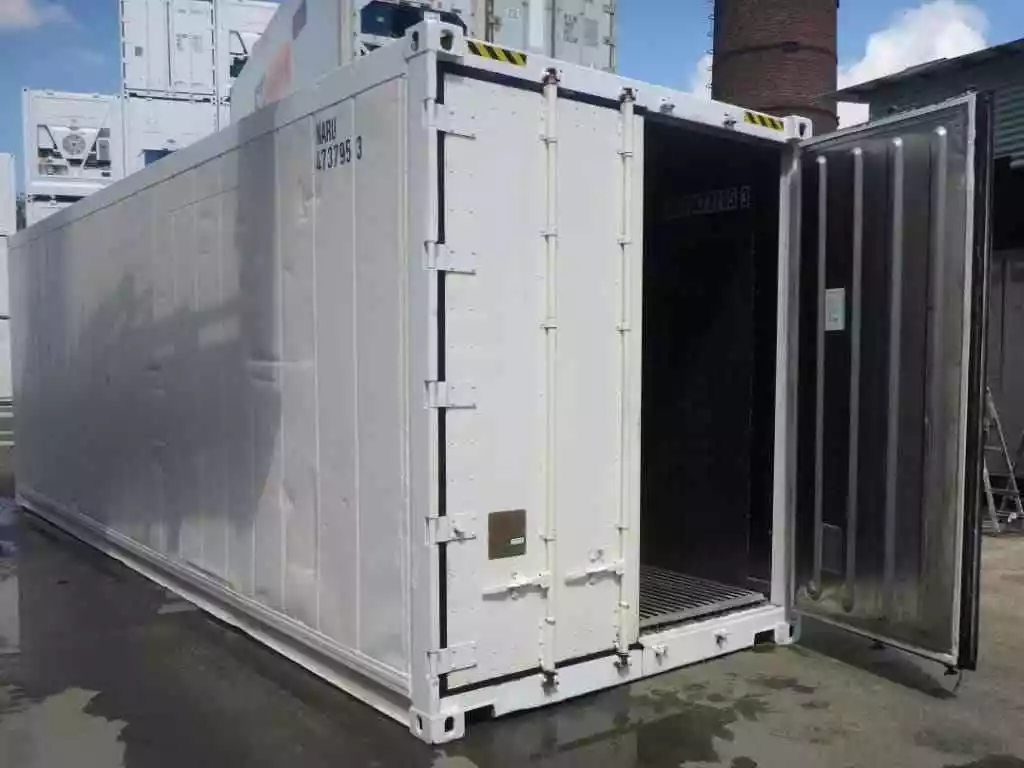

- Secure Storage: Features lockable, weather-sealed double doors at one end to ensure the security and integrity of stored products.
- Intermodal Compatibility: Standard corner castings allow for easy lifting, stacking, and transport by truck, rail, or ship.
