Description
Explore the 40 ft High Cube Refrigerated Reefer Container – Operational Cold Storage Unit at 175 Container Partner for temperature-controlled storage. Compare the cooling equipment, insulation, power supply, and stated operating range with the needs of your goods and installation site.
The specification and configuration details below help you assess this model. Confirm the actual unit, included equipment, delivery access, and any documentation needed for your intended use before ordering. Optional features are separate from standard inclusions.
Technical Specifications
| Specification | Listed Detail |
|---|---|
| External Dimensions (L x W x H) | 12.19 m x 2.44 m x 2.90 m (40′ x 8′ x 9’6″) |
| Internal Dimensions (L x W x H) | Approx. 11.58 m x 2.29 m x 2.55 m (38′ x 7’6″ x 8’4″) |
| Door Opening (W x H) | Approx. 2.29 m x 2.57 m (7’6″ x 8’5″) |
| Internal Cubic Capacity | Approx. 67.3 m³ (2,380 ft³) |
| Maximum Gross Weight | 34,000 kg (74,957 lbs) |
| Tare Weight (approx.) | 4,480 kg (9,880 lbs) |
| Payload Capacity (approx.) | 29,520 kg (65,080 lbs) |
| ISO Code | 45R1 |
| Temperature Range | Typically configurable between -30°C and +30°C |
Applications and Compatibility
- Perishable Food Logistics: Transport of fruits, vegetables, dairy products, meat, and seafood requiring chilled or frozen conditions .
- Pharmaceutical Transport: Shipment of medicines and vaccines that require strict temperature control to maintain efficacy .
- Cold Storage: Utilization as a temporary or permanent refrigerated storage unit at warehouses, distribution centers, or event venues.
- Non-Food Sensitive Goods: Transport of items such as cut flowers, photographic film, or certain chemicals that are sensitive to temperature fluctuations .
Listed Inclusions
- 1 x 40′ High Cube Working Refrigerated Container
- 1 x Integrated, operational front-mount refrigeration unit
- Standard ISO corner castings
Additional Listed Features
- Integrated Refrigeration Unit: The container includes a front-mounted, operational refrigeration system designed to maintain consistent temperatures, commonly within a range of -30°C to +30°C, depending on the cargo specifications .
- High Cube Configuration: As a High Cube unit, this container offers an additional 12 inches (approx. 30 cm) of vertical interior space compared to a standard 40′ reefer, increasing its internal height to accommodate bulkier goods .
- Robust Steel Construction: The container is built with a corten steel frame and corrugated steel walls, providing structural integrity for stacking, handling, and durability in sea, rail, or road transport environments .
- Enhanced Thermal Insulation: The walls, floor, and roof are constructed with polyurethane foam insulation to minimize heat leakage, supporting energy efficiency and stable internal conditions .

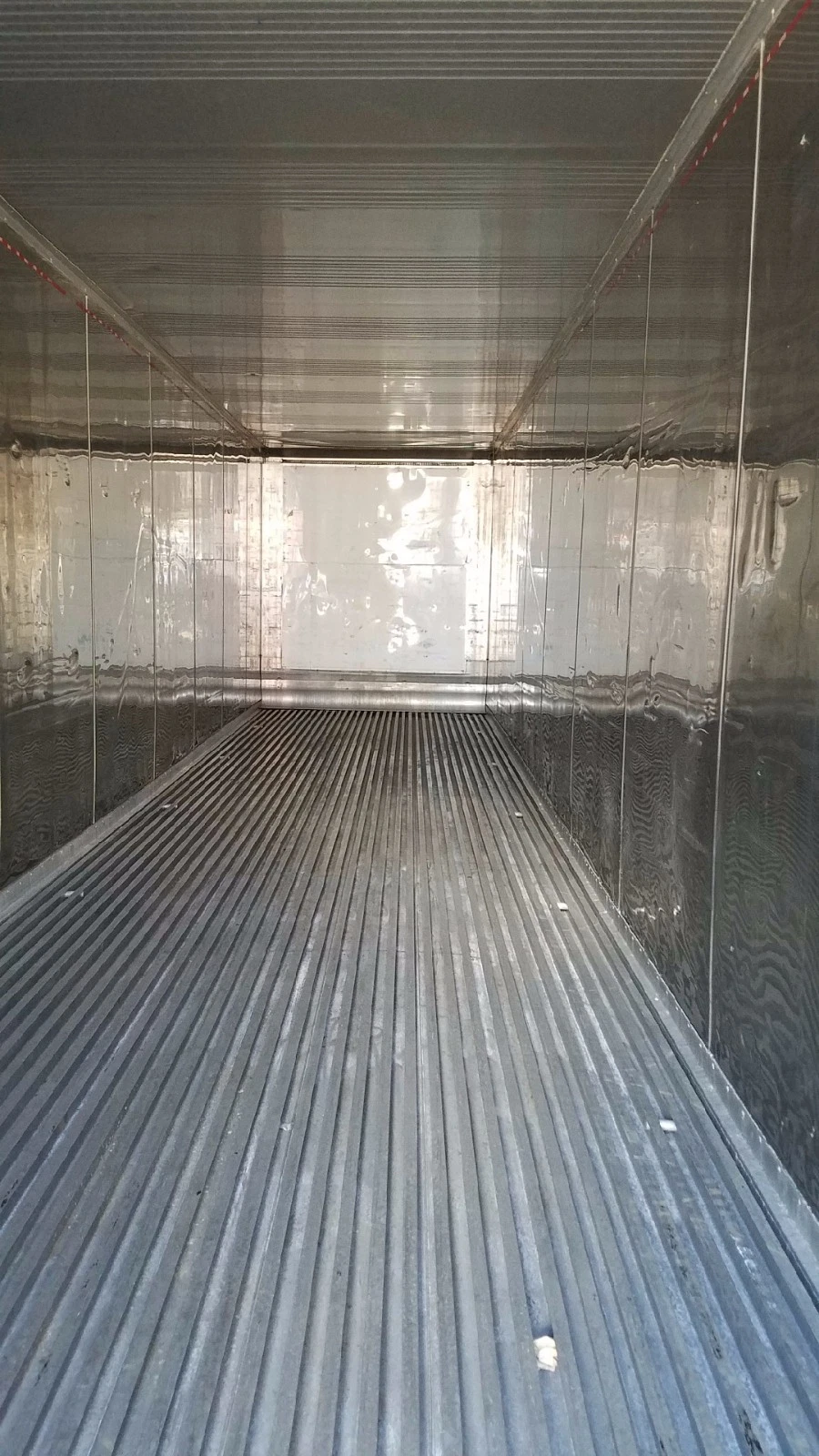

- T-Floor Design: The interior flooring features a durable aluminum T-floor design, which facilitates air circulation beneath the cargo from the refrigeration unit and provides strength for loading with forklifts or pallet jacks .
