Description
Explore the 40 ft Tunnel Container – Fully Shelved Mobile Workshop Unit at 175 Container Partner for workspace and modular building projects. Compare the layout, access points, insulation, and listed utilities with your space and site requirements.
The specification and configuration details below help you assess this model. Confirm the actual unit, included equipment, delivery access, and any documentation needed for your intended use before ordering. Optional features are separate from standard inclusions.
Technical Specifications
| Specification | Listed Detail |
|---|---|
| External Dimensions (L x W x H) | 40 ft x 8 ft x 8 ft 6 in (12.19 m x 2.44 m x 2.59 m) |
| Internal Dimensions (L x W x H) | 39 ft 6 in x 7 ft 8 in x 7 ft 10 in (12.03 m x 2.35 m x 2.39 m) |
| Door Opening Width | Approximately 7 ft 8 in (2.34 m) |
| Door Opening Height | Approximately 7 ft (2.13 m) |
| Material | 14-gauge Corten Steel (weathering steel) |
| Flooring | 28 mm Marine-grade plywood |
| Shelving Material | Powder-coated galvanized steel |
| Load Capacity (Uniform) | Up to 60,000 lbs (27,215 kg) |
| Locking Mechanism | Anti-racking locking rods with welded padlock protectors |
| Ventilation | Two passive vents per side |
Applications and Compatibility
- Construction Sites: As a secure on-site tool room and storage shed for materials.
- Industrial Facilities: For creating additional storage or light-duty workshop space within a warehouse.
- Agricultural Operations: To store machinery parts, veterinary supplies, or feed in a vermin-resistant enclosure.
- Remote Worksites: As a mobile base of operations containing tools and workbenches.
- Equipment Maintenance: Providing a covered, lockable space for performing repairs on equipment or vehicles (up to small truck size, given the tunnel configuration).
Listed Inclusions

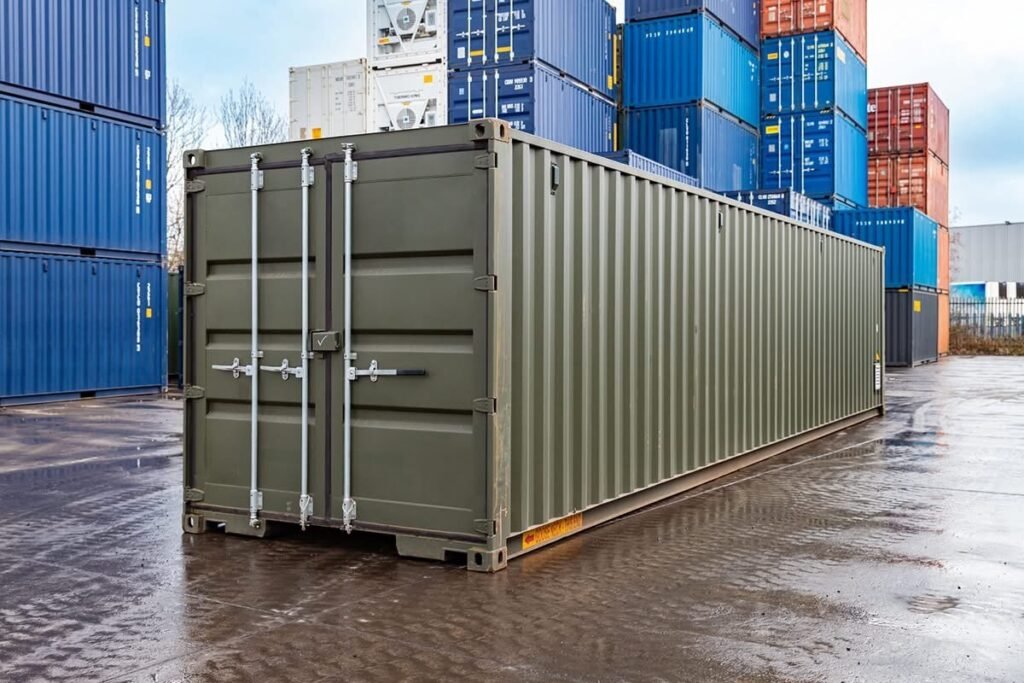

- 1 x 40ft High Cube Tunnel Container
- 1 x Set of integrated steel wall shelving units
- 1 x Marine-grade plywood flooring
- Standard ISO corner castings
Additional Listed Features
- Dual-End Access: Double doors on both ends facilitate drive-through access and natural ventilation, improving workflow efficiency.

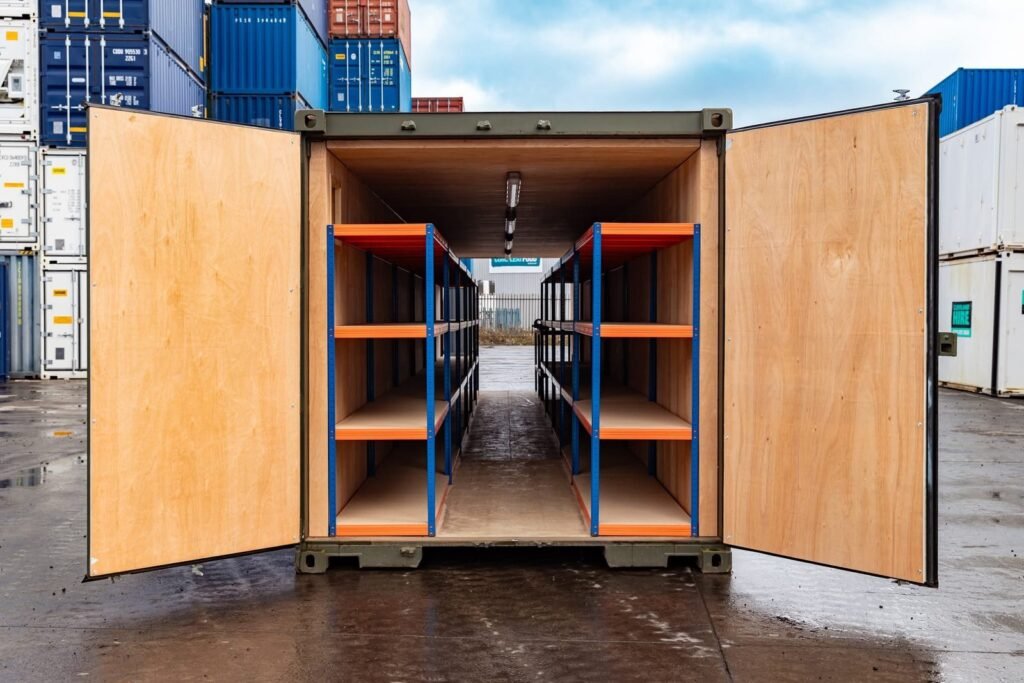

- Integrated Shelving System: The container includes factory-installed steel shelving units along the walls, providing organized storage without the need for separate installation.
- High-Security Lockboxes: Exterior lockboxes protect padlocks from bolt cutters and tampering, enhancing security for stored contents.
- Ventilation: Passive ventilation units are integrated into the design to reduce condensation and improve airflow within the space.
- Durable Flooring: Features a marine-grade plywood floor capable of supporting heavy loads and resisting wear from foot traffic and equipment.
- Corner Castings: Standard ISO corner castings allow for secure transportation, stacking, and handling by crane or forklift.
