Description
Explore the 45 ft Shipping Container – Heavy-Duty Large Capacity Cargo Unit at 175 Container Partner for container storage and project planning. Compare access, construction, interior space, and the listed condition before selecting a container for tools, equipment, inventory, or a conversion project.
The specification and configuration details below help you assess this model. Confirm the actual unit, included equipment, delivery access, and any documentation needed for your intended use before ordering. Optional features are separate from standard inclusions.
Technical Specifications
| Specification | Listed Detail |
|---|---|
| External Dimensions | | |
| Length | 13,716 mm | 45 ft |
| Width | 2,438 mm | 8 ft |
| Height | 2,896 mm | 9 ft 6 in |
| Internal Dimensions | | |
| Length | 13,556 mm | 44 ft 6 in |
| Width | 2,352 mm | 7 ft 9 in |
| Height | 2,698 mm | 8 ft 10 in |
| Door Opening | | |
| Width | 2,340 mm | 7 ft 8 in |
| Height | 2,585 mm | 8 ft 6 in |
| Weights and Capacity | | |
| Maximum Gross Weight | 32,500 kg | 71,650 lbs |
| Tare Weight | 4,820 kg (approx.) | 10,628 lbs (approx.) |
| Payload Capacity | 27,800 kg (approx.) | 61,290 lbs (approx.) |
| Cubic Capacity | 86.0 m³ | 3,040 ft³ |
| Construction Material | High-grade Corten steel | |
| Floor Type | Marine-grade plywood | |
| Compliance | ISO and CSC certified | |
Applications and Compatibility
- Intermodal Freight Transport : Compatible with container ships, rail flatcars, and semi-trailer chassis for the secure movement of dry goods across domestic and international routes .
- Bulk Cargo Storage : Provides a secure, weather-resistant environment for on-site storage of raw materials, finished goods, equipment, or documents at construction sites, warehouses, or distribution centers.
- Palletized Goods Handling : The internal width is optimized to accommodate standard pallet configurations, with the capacity to hold up to 24 standard pallets or 27 Euro-pallets in a single tier .
- Modular Infrastructure Base : Often utilized as a structural component for temporary or permanent facilities, including site offices, workshops, or equipment enclosures, due to its modular nature and robust construction.
Additional Listed Features
- High-Capacity Design : Offers approximately 86.0 cubic meters (3,040 cubic feet) of interior space, accommodating large-volume cargo efficiently .
- Heavy-Duty Construction : construction: high-grade Corten steel, which is formulated to withstand harsh weather conditions and resist corrosion over prolonged use .
- ISO Standard Compliance : Built to International Organization for Standardization (ISO) specifications, supporting seamless handling and stacking compatibility with global shipping equipment .
- Gooseneck Tunnel : Incorporates a gooseneck tunnel in the understructure, facilitating secure transport on specialized roll-on/roll-off (Ro-Ro) equipment and trailer chassis .

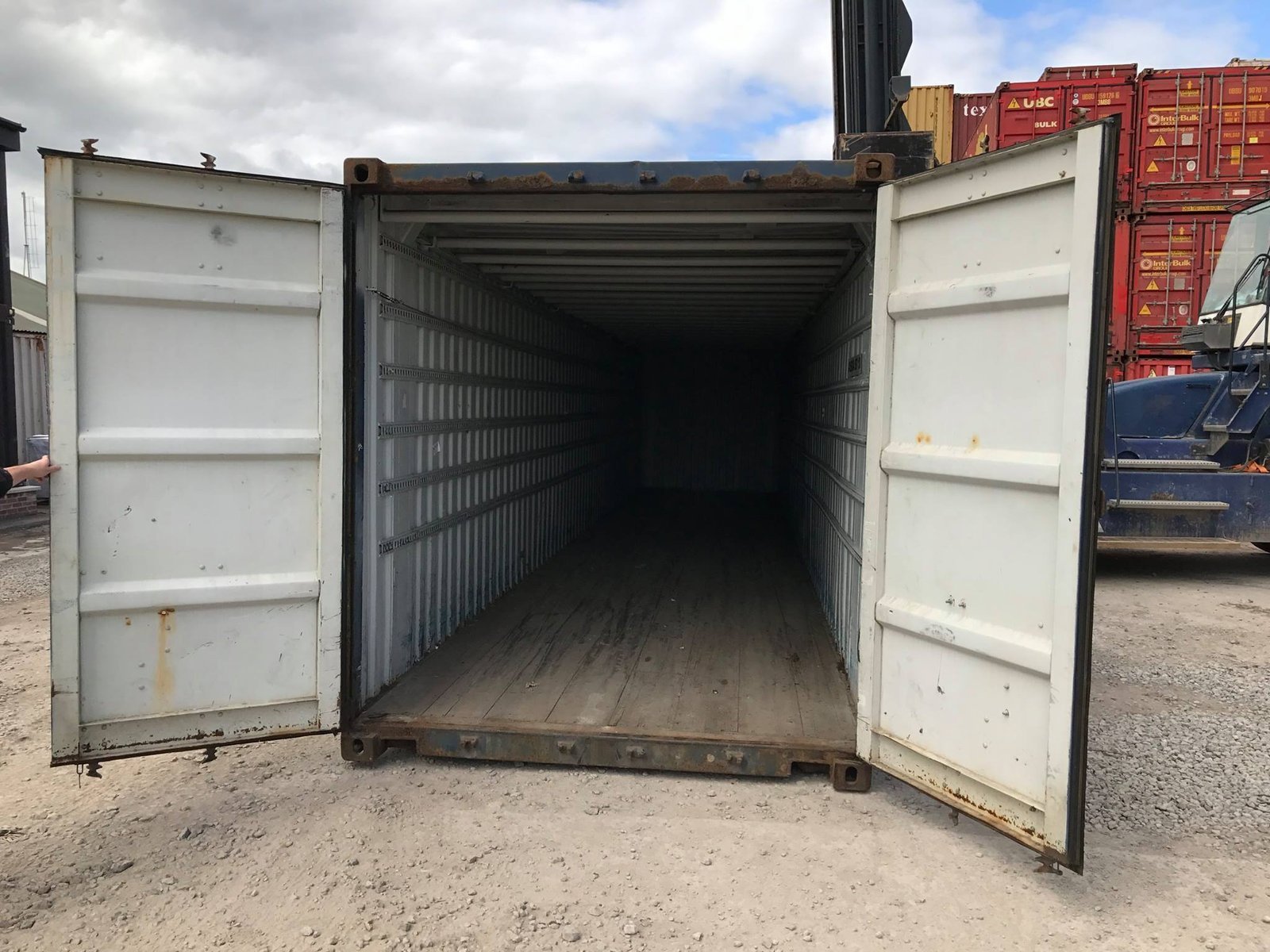

- Double-Swing Doors : Fitted with rear double doors that open to a width of approximately 2.34 meters (7 feet 8 inches), allowing for straightforward loading and unloading of palletized goods and bulk cargo .
- Secure Locking Mechanism : Equipped with lockable door rods and protective lock boxes to deter unauthorized access during transit or storage .
Additional Configuration Details
- Additional stated measurement: approximately 13.55 meters
- Additional stated measurement: 44 feet 6 inches
